product name
3296W multi turn metal glass glaze fine adjustment potentiometer precision adjustable resistor
spots:1K 2K 5K 10K 20K 50K 100K
product description

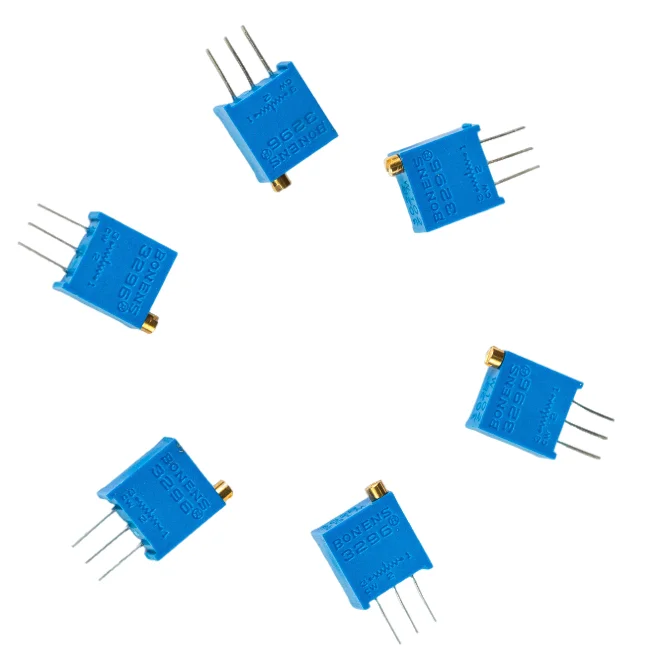

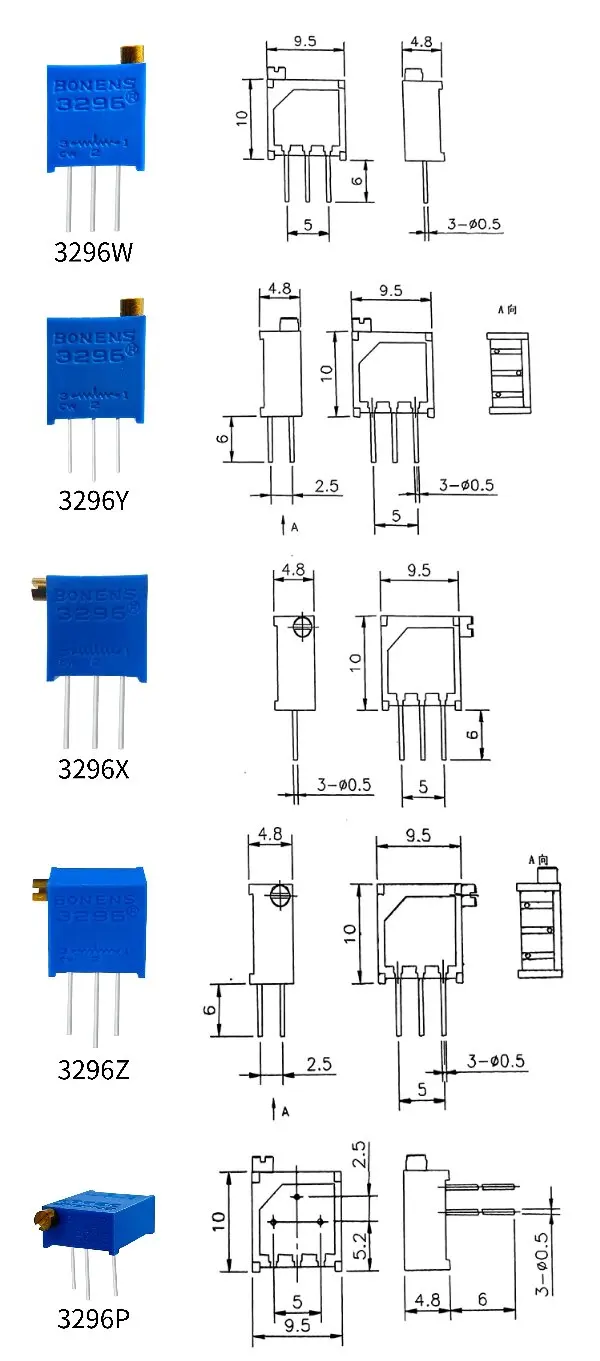

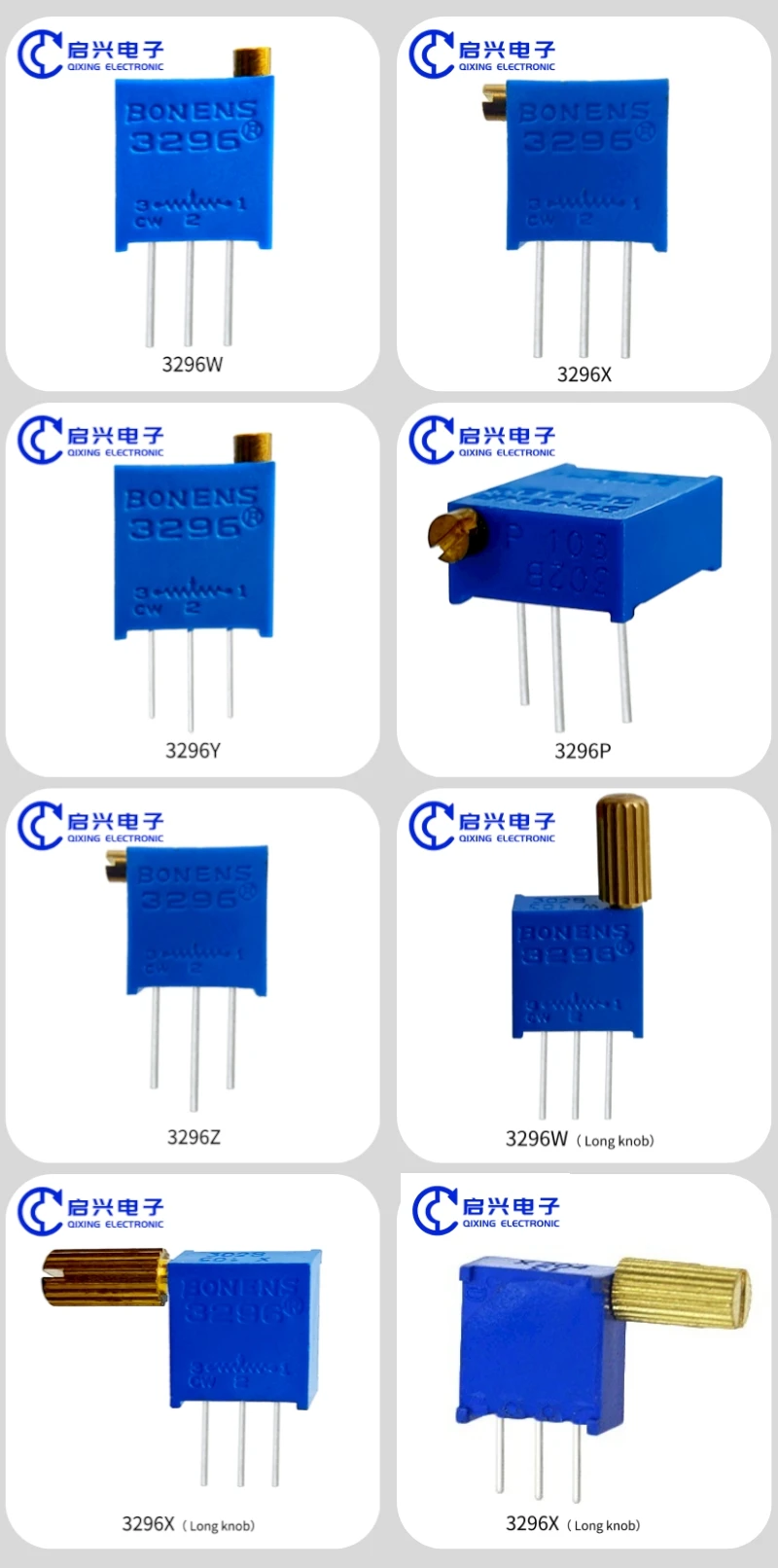

Potentiometer 3296W is a multi-turn potentiometer, the adjustment accuracy of resistance has 5% and 10% two standards, the resistance range of the product is: 10Ω ~ 5MΩ. With a total mechanical stroke of 28±2 turns, the 3296 potentiometer is one of the most commonly used multiturn potentiometers.3296 series potentiometer has many different models, different models of potentiometers have different specifications, packaging is also different, 3296 potentiometers belong to multi-turn precision potentiometers, mainly 3296W, 3296X, 3296P, 3296Y, 3296Z, etc
Product Features
The characteristics of the 3296 multi turn glass glaze preset potentiometer are high accuracy, good reliability, and long service life. In addition, it also has high resolution and can be used to adjust the gain and linearity of the signal
Specification parameters
Electrical Characteristics | Range of nominal resistance | |
| | |
| | |
Contact resistance variation (CRV) | |
| | |
| | 640V (DC or AC peak value) |
Effective electrical travel | ≥70% of mechanical travel |
| |
Environment Characteristics | | |
| | |
| | |
Collision (390m/S2, 4000 times) | |
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | |
Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ |
Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
| |
| | | |
| | |
| | 50 pcs /tube(3296W,3296Y) |
40 pcs /tube(3296X,3296Z,3296P) |
application area

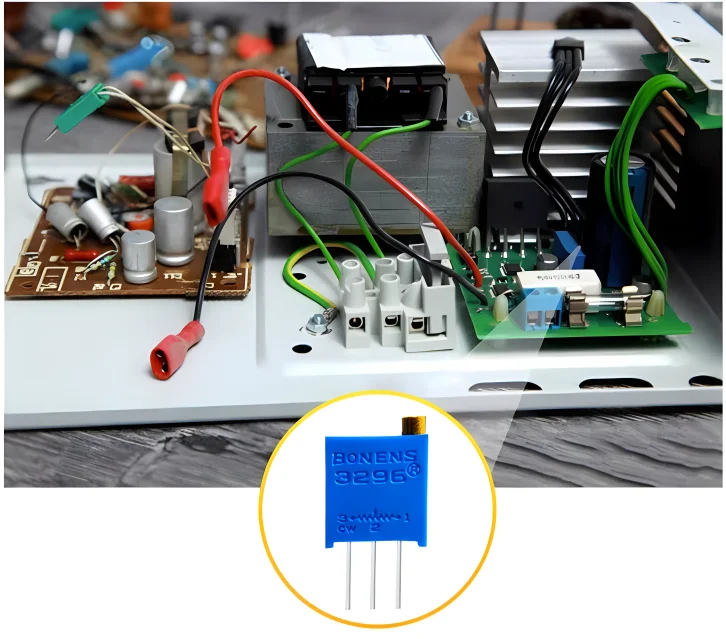

This type of potentiometer is mainly used in industrial control, communication equipment, precision instruments, automotive electronics, LCD panels, switching power supplies, and other fields
product catalog
There are two types of glass glaze pre adjustment potentiometers: multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
Company Profile
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
