500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control

Sichuan Qixing Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

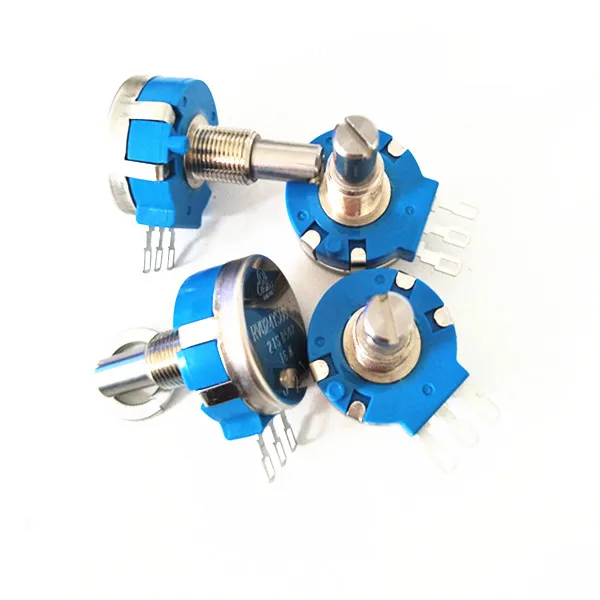

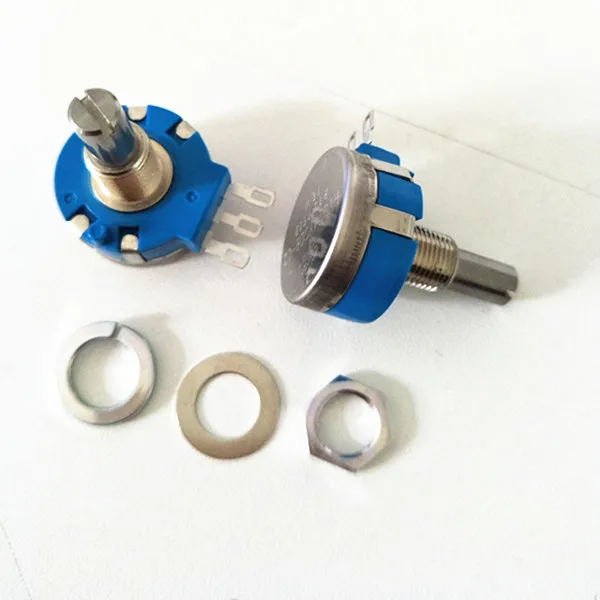

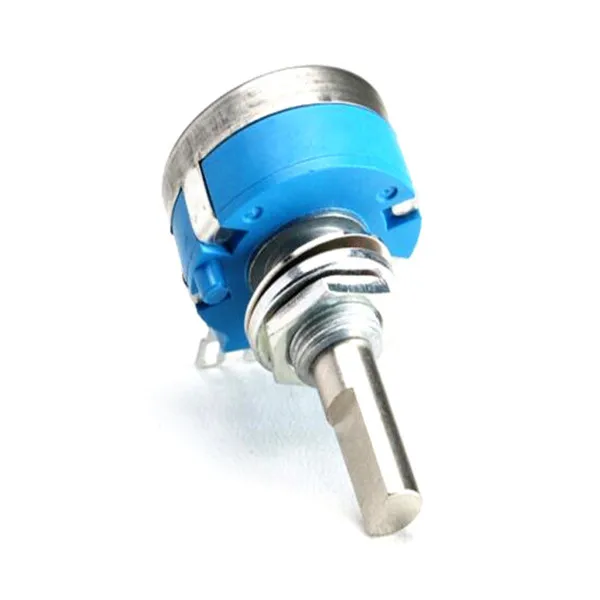

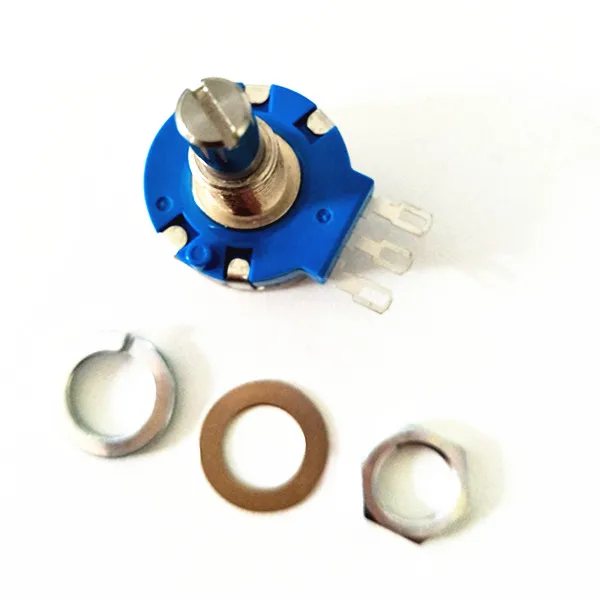

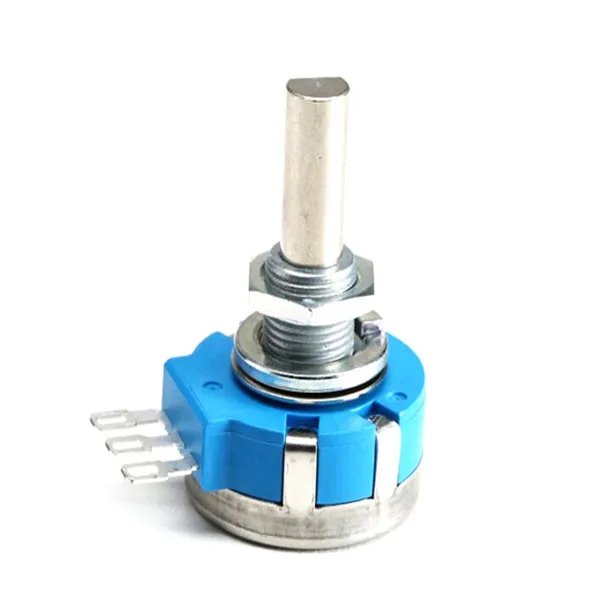

500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control

Place of Origin : Sichuan, China

Brand Name : TOCOS

Model Number : RV24

MOQ : 100

Resistance Range : 1KΩ,2KΩ,5KΩ,10KΩ

Resistance Tolerance : ±10%

End Resistance : 3Ω Max

Resistance Taper : B(Linear)

Contact Resistance : 3% max

Power Rating : 0.5W/40°C

Max Voltage : 200VDC

Electrical Angle : 280°

Insulation Resistance : 100MΩ Min/DC 1000V

Operating Temperature : -10°C~+85°C

Linearity : ±3% Max.

Soldering Heat : 350°C±5°C,3sec.

Temperature Characteristics : +80°C,5 hours

Vibration Resistance : 10~55Hz,amplitude 1.5mm 3 directions

Rotation Life : 2,000,000 cycles

Contact Now

RVQ24 long rotate life 1k 5k 10k 20S 20F 25S 25F 30S 50S Rotary precision Potentiometer
Product Description
500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control
500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control
500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control
500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control
500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control
500W Power Rotary Potentiometer with 1k-10kΩ Resistance and ±10% Tolerance for Precision Control

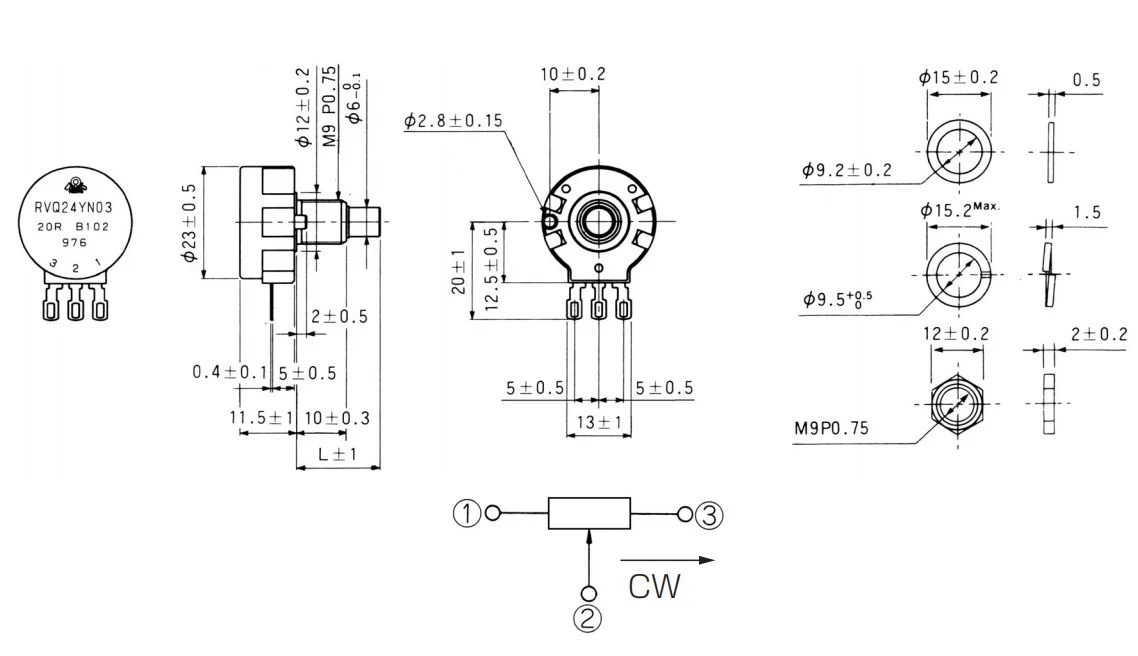

Specification










Electrical Characteristics
Total resistance Range
1KΩ,2KΩ,5KΩ,10KΩ
Total resistance tolerance
±10%
End resistance
3Ω Max
Resistance Taper
B(Linear)
Contact resistance variation
3% max
Power Rating
0.5W/40°C
Max input voltage
200VDC or power rating,whichever is smaller
Electrical angele
280°
Insulation resistance
100MΩ Min/DC 1000V
Operating temp.range
-10°C~+85°C
Independent Linearity
±3% Max.





Environment Characteristics
Slodering heart
350°C±5°C,3sec.
Temperature Characteristics
+80°C,5 hours
Moisture and load life
+40°C,90~95%RH 0.5W,500 Hours
temerature cycle
-10°C,+80°C ea.30 minutes 5 cycles
Vibration
10~55Hz,amplitude 1.5mm 3 directions
Rotation life
2,000,000 cycles,without rating load
