High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm

Brand Name : bonens

Model Number : DBI

Place of Origin : Sichuan, China

Terminal Resistance : ≤0.2%or1Ω

Insulation Resistance : ≥100mΩ（500Vdc）

Dimensions : 6mm x 9mm

Temperature Range : -55℃~350℃

Rated Power : 25W~500W

Resistance Error Error : ±10%

Packaging Type : Paper package

Operating Temperature : -55°~+400°

Mounting Type : Through Hole

Termination Style : Axial

Temperature Coefficient : ±100ppm/°C

Package/Case : 6mm Round

Head Mechanical Itinerary : 300°±1 Rotate smoothly

Power Rating : 0.25W

Dampness : 40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ

Contact Now

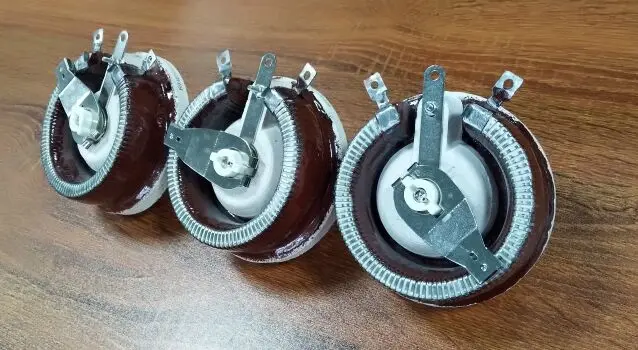

High power ceramic variable wirewound resistor adjustable rheostat 1k 1kohm
1.BC1 ceramic tray variable series are wound with chromium-alloy wire as a resistor element.
2.The entire component is coated non-flammable and high-temperature resin exception for the
slide contact surface.
3.After cooling and drying, insulation is applied through a high-temperature process. Installed
centered roating adjuster component slides along the resistance element to vary the
to the desired value.
4.High power rating,resistance to humidity, resistance value in great adjustable range.
5.On one resistor ,can have the different resistance requirement(flat and round wire can be in the same rheostat).
Features:
1.High power rating,resistance to humidity, resistance value in great adjustable range.
2.Widely used in educational modeling,load simulations,industiral machinery RPM adjustment,
voltage and current adjustment,instruments,and automated control installations, ect.
3.Can provide the knob with customers requirement.
Common specificaction:
25W,50W,100W,150W,300W,500W,1000W,1500W,2000W,2500W,3000W ect.
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm

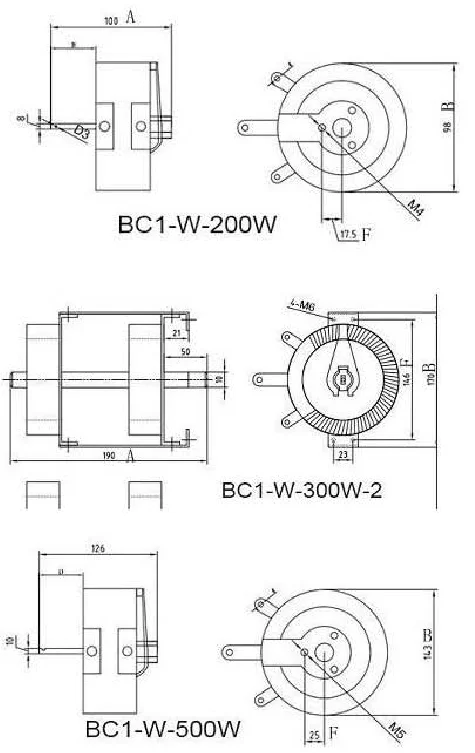

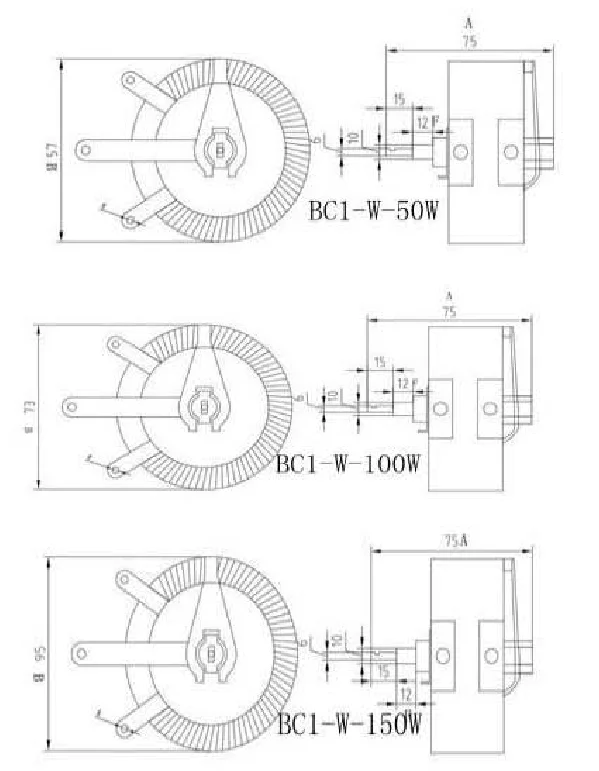

Specification
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm

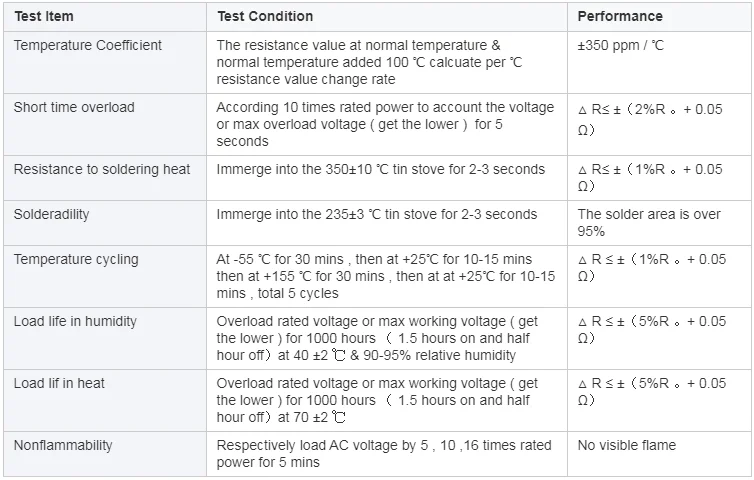

Performance test
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm

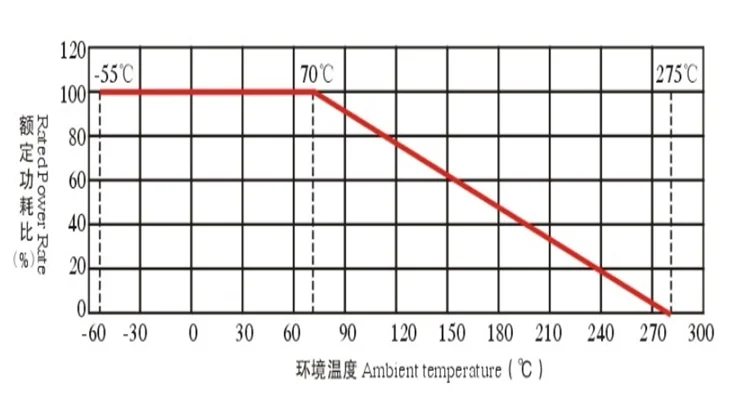

Rated power derating curve
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
Different type
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
Packing & Delivery
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
High Power Ceramic Variable Wirewound Resistor Adjustable Rheostat 1k Ohm
Economic Packing desgin which will save your transportation cost;
Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs;
The samples shipped by international express & the mass production insulator shipped by sea or air.
