product name

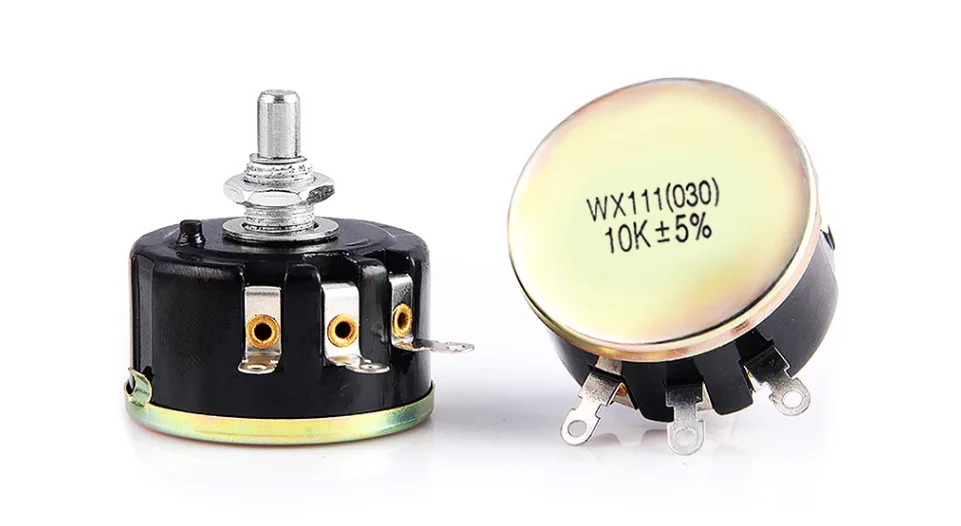

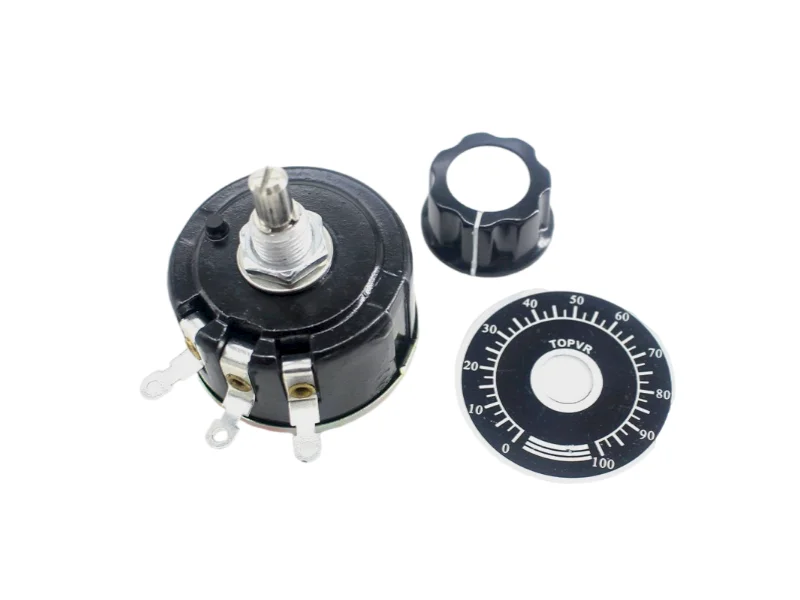

WX111 wx030 Single-turn wire wound potentiometer, 3W adjustable resistor, 1K, 2.2K, 4.7K, 5.1K, 10K
product description
WX111 wound Potentiometer, power: 3W/5w Product resistance: 1~47 Ω, rotation angle: 300 degrees, shaft diameter: 6MM, WX111 wound Potentiometer Product package: 20 pieces/box
Product Features
Excellent craftsmanship, smooth operation, reliable and stable performance, insulated and dustproof interface, high protection level

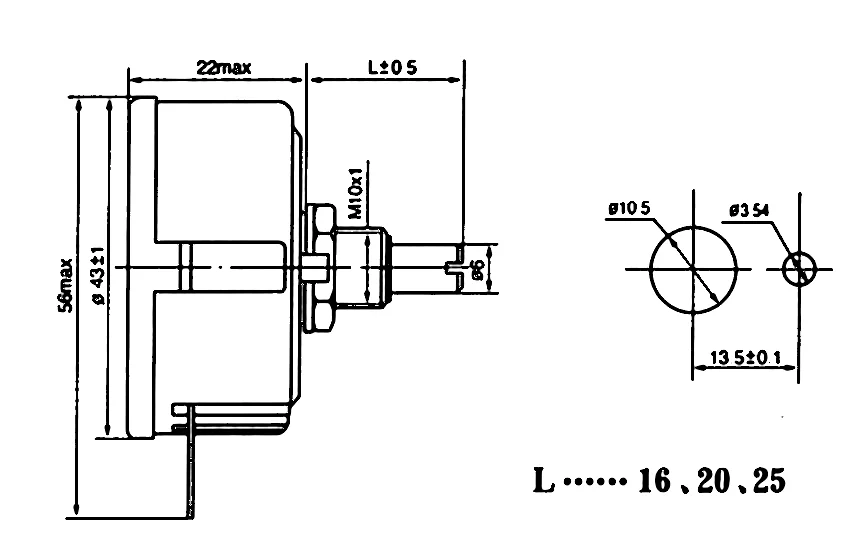

Product size
Specification parameters
| product name | potentiometer | Model | WX111(030) |
| Resistance range | 1~47K | resistance tolerance | ±10% |
| power | 3W | Element | Wirewound |
| Number of Turns | 1turn | Shaft specifications | 20ZS-3 |
| shaft diameter | 6mm | outside diameter | 43mm |
| Electrical Angle | 280°±10° | Mechanical Angle | 300°±5° |
| mechanical life | 100000times | package | 20pieces/box |
application area
This product is suitable for precise adjustment of DC or low-frequency voltage and current in telecommunications, electricians, and electronic instrument equipment
